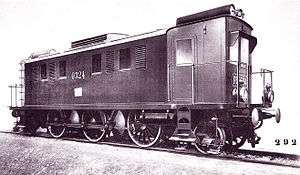

FS Class E.320

FS class E.320

Type and origin
Power type	Electric
Builder	OM, TIBB
Build date	1915-1918
Total produced	5

Specifications
AAR wheel arr.	1'C 1'
UIC class	1'C 1'′
Gauge	1,435 mm (4 ft 8 ¹⁄₂ in) standard gauge
Wheel diameter	1,500 mm (59.06 in)
Length	12.77 m (41 ft 10 ³⁄₄ in)
Loco weight	71.8 t (70.7 long tons; 79.1 short tons)
Electric system(s)	650 V DC
Current collection	Third rail
Traction motors	DC

Performance figures
Maximum speed	95 km/h (59 mph)
Power output	1,100 kW (1,480 hp)

Career
Operators	FS
Disposition	Disposed

The Class E.320 was an Italian electric locomotive built from 1915 to 1918. It was in service in the Varese-Milan-Porto Ceresio railroad, using third rail. Built in five units, they were provided by two direct current electric motors, designed by TIBB, giving it a maximum speed of 95 km/h. The final assembly and the mechanical design were by Officine Meccaniche.

Sources

Cornolò, Giovanni (1983). Locomotive elettriche FS (in Italian). Parma: Ermanno Albertelli Editore. pp. 33–38.
