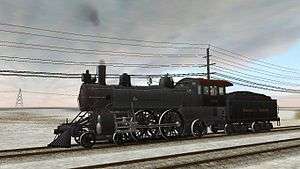

N&W Class J (1903)
N&W J class(1903)|
|
|
|
| Specifications |
|---|
| Configuration |
4-4-2 |
|---|
| Gauge |
4 ft 8 1⁄2 in (1,435 mm) |
|---|
| Driver dia. |
79 in (2,007 mm) |
|---|
| Length |
109 ft 2 in (33.27 m) |
|---|
| Height |
16 ft 2 in (4.93 m) |
|---|
| Axle load |
72,000 lb (32.7 tonnes) for drivers |
|---|
| Adhesive weight |
80,930 lb (36.7 tonnes) |
|---|
| Loco weight |
169,090 lb (76.7 tonnes) |
|---|
| Tender weight |
100,000 lb (45.4 tonnes) |
|---|
| Total weight |
269,090 lb (122.1 tonnes) |
|---|
| Fuel type |
Coal |
|---|
| Fuel capacity |
10,000 lb (4.5 tonnes) |
|---|
| Water cap |
6,000 US gal (23,000 l; 5,000 imp gal) |
|---|
Firebox:
• Firegrate area |
45.1 sq ft (4.19 m2) |
|---|
| Boiler pressure |
200 lbf/in2 (1.38 MPa) |
|---|
Heating surface:
• Tubes and flues |
4,693 sq ft (436.0 m2) |
|---|
| • Firebox |
165 sq ft (15.3 m2) |
|---|
Superheater:
|
|
|---|
| • Heating area |
2,177 sq ft (202.2 m2) |
|---|
| Cylinders |
Two |
|---|
| Cylinder size |
19 in × 28 in (483 mm × 711 mm) |
|---|
| Valve gear |
Stephenson |
|---|
| Valve type |
Piston valves |
|---|
|
|
|
|
|
Norfolk and Western Class J is a class of 4-4-2 steam locomotives purchased by Norfolk and Western Railroad, this being the second "J" class, and should not be confused with the later, more well known J class of 1941. The retirement of the first J classes in 1900 left the designation available for reuse for these engines. There were 7 of these Class Js made, and they were retired between 1931 and 1935, once again leaving the "J" class designation available to be reused in 1941.[1]
