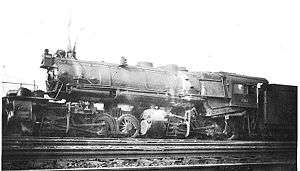

PRR CC1s

Pennsylvania Railroad CC1s

Type and origin
Power type	Steam
Builder	Baldwin Locomotive Works (1)
Model	Baldwin 16-44/72 EE
Build date	1912
Total produced	1

Specifications
Configuration	0-8-8-0 (Mallet)
Gauge	4 ft 8 ¹⁄₂ in (1,435 mm)
Driver dia.	56 in (1,400 mm)
Adhesive weight	370,000 lb (167,800 kg)
Fuel type	Coal
Firebox: • Firegrate area	78 sq ft (7.2 m²)
Boiler pressure	205 psi (1.41 MPa)
Heating surface	4,953 sq ft (460.1 m²)
Superheater:
• Heating area	988 sq ft (91.8 m²)
Cylinders	Four: Mallet compound
High-pressure cylinder	25 in × 30 in (635 mm × 762 mm)
Low-pressure cylinder	39 in × 30 in (991 mm × 762 mm)

Career
Operators	Pennsylvania Railroad
Numbers	3397
Disposition	Scrapped in 1932

The Pennsylvania Railroad (PRR) class CC1s consisted of a single experimental 0-8-8-0 steam locomotive built by Baldwin Locomotive Works in 1912. It was assigned road number #3397 and placed in service at the PRR Pitcairn yard in Pitcairn, Pennsylvania, near Pittsburgh. A subsequent class, the CC2s, was constructed after the tests conducted with this locomotive. Finding little advantage to articulated steam locomotives, the PRR scrapped it in 1932.
