QF 6 inch Mark N5 gun
| Ordnance QF 6 inch Gun Mark N5 | |
|---|---|
|

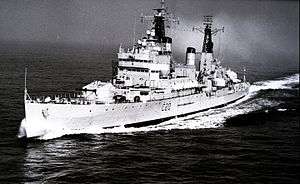

HMS Tiger at sea in 1965, showing the large twin 6 inch gun mounting | |
| Type | Naval gun |
| Place of origin | United Kingdom |
| Service history | |
| In service | 1959 to 1979 |
| Used by |
 Royal Navy |
| Production history | |
| Designed | 1944 (suspended and resumed, 1948) |
| Specifications | |
| Weight | 15,344 lbs. (6,960 kg) |
| Length | 315 in (8.001 m) |
| Barrel length |
300 in (7.62 m) (50 calibres) |
|
| |
| Shell |
AP: 129.75 lb (58.85 kg) HE: 132 lb (60 kg) |
| Calibre | 6-inch (152.4 mm) |
| Breech | Horizontally sliding breech block (hydraulic operation) |
| Carriage | Modified Mark XXVI (Mark 26) |
| Elevation | -5 to +78.5 degrees |
| Rate of fire | 15 to 20 rounds per minute |
| Muzzle velocity | 2,520 feet per second (768 m/s) |
| Maximum firing range | 25,000 yd (23,000 m) at 45 degrees elevation (firing AP shot) |
_(20872081230).jpg)
The QF 6 inch Gun Mark N5 (initially designated QF 6 inch Mk V) was a British naval gun, development of which started during the Second World War, but did not actually enter service with the Royal Navy until the first Tiger-class cruiser was commissioned in 1959. Fitted in pairs to the new and complex Mark 26 dual purpose gun turret designed for rapid automatic fire, the weapon system gained a somewhat undeserved reputation for unreliability and difficult maintenance, but remained in service until 1979 when they were the last 6 inch guns ever to be fired from a British warship.[1]
References
- ↑ DiGiulian, Tony (27 December 2015). "Britain - 6"/50 (15.2 cm) QF Mark V - 6"/50 (15.2 cm) QF Mark N5". www.navweaps.com. Retrieved 7 February 2016.
