SNCF Class CC 72100

Class CC 72100

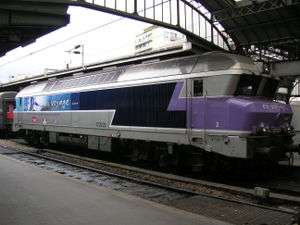

CC 72121 at Gare de l'Est 26 December 2005.
Type and origin
Power type Diesel-Electric
Builder Alsthom
Rebuild date 2002–2004
Number rebuilt 30
Specifications
UIC class C'C'
Gauge 1,435 mm (4 ft 8 1⁄2 in) standard gauge
Bogies Monomotor
Wheel diameter 1,140 mm (44.88 in)
Length 20,190 mm (66 ft 3 in)
Loco weight 105 tonnes (103 long tons; 116 short tons)
Fuel type Diesel
Prime mover SEMT Pielstick V16-PA-4-V200-VGA
Traction motors TAO 656 B1 1215 V
Transmission Electric
Performance figures
Maximum speed 160 km/h (99 mph)
Power output 2,650 kW (3,554 hp)
Career
Operators SNCF
Class CC 72100
Number in class 30
Numbers In range 72127 – 72190
Locale Paris - Mulhouse

The SNCF Class CC 72100 is a class of C-C diesel locomotives rebuilt from CC 72000 locomotives during 2002–2004.

30 locomotives were converted: 21, 30, 37–41, 43, 45, 47, 48, 51, 56–60, 63, 66, 68, 72, 75–80, 82, 86, 89–90. They find use on the Paris - Mulhouse line and are based at Chalindrey.
