Santa Fe 5017

Atchison, Topeka & Santa Fe Railway 5017

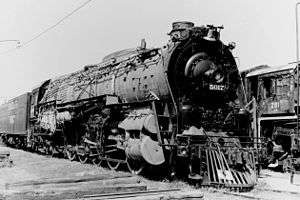

ATSF 5017 at the National Railroad Museum, Green Bay in August 1970

Type and origin
Power type	Steam
Builder	Baldwin Locomotive Works
Serial number	70823
Build date	1944

Specifications
Configuration	2-10-4
UIC class	1′E2′ h2
Gauge	4 ft 8 ¹⁄₂ in (1,435 mm)
Driver dia.	74 in (1.880 m)
Length	123 ft 5 in (37.62 m)
Adhesive weight	380,300 lb (172.5 t)
Total weight	1,000,700 lb (453.9 t)
Fuel type	Oil
Fuel capacity	7,000 US gal (26,000 l; 5,800 imp gal)
Water cap	24,500 US gal (93,000 l; 20,400 imp gal)
Boiler pressure	310 psi (2.14 MPa)
Cylinders	Two
Cylinder size	30 in × 34 in (762 mm × 864 mm)

Performance figures
Power output	5,600 hp (4,200 kW)
Tractive effort	108,960 lbf (484.7 kN)
Factor of adh.	3.49

Career
Operators	Atchison, Topeka, and Santa Fe
Class	5011
Number in class	7 of 37
Last run	July 25, 1955
Disposition	Preserved at the National Railroad Museum, Green Bay, Wisconsin

Santa Fe 5017 is a 2-10-4 or "Texas" type steam locomotive built by the Baldwin Locomotive Works in 1944 for the Atchison, Topeka and Santa Fe Railway.

History

No. 5017 was built by Baldwin Locomotive Works in 1944. It entered service on July 20 of that year and was assigned to freight service on the Pecos division, the Mountain Division of New Mexico. The 5017 operated between Belen, New Mexico, Waynoka, Oklahoma, and La Junta, Colorado. Between 1953 and 1955, No. 5017 was used in extra service on the Pecos division in eastern New Mexico to supplement diesel power during the peak movement of perishables, grains, and other commodities. On July 25, 1955, No. 5017 made her last trip, tallying 755,088 miles.

No. 5017 was brought to the National Railroad Museum through the efforts of former director, Mr. W.L. Thorton, who was the Director of Traffic for the Kimberly-Clark railway. It was formally donated on December 27, 1959, by E. Marsh, President of the Santa Fe Railway.
