TCDD DE18100
DE18100|
|
| Type and origin |
|---|
| Power type |
Diesel-electric |
|---|
| Builder |
Matériel de Traction Electrique, France |
|---|
| Build date |
1978– |
|---|
| Total produced |
20 |
|---|
|
| Specifications |
|---|
| AAR wheel arr. |
A1A-A1A |
|---|
| UIC class |
(A1A)(A1A) |
|---|
| Gauge |
1,435 mm (4 ft 8 1⁄2 in) |
|---|
| Bogies |
2 |
|---|
| Wheel diameter |
1,100 mm (43 in) |
|---|
| Length |
16.44 m (53 ft 11 in) |
|---|
| Width |
2.7 m (8 ft 10 in) |
|---|
| Height |
4.153 m (13 ft 8 in) |
|---|
| Loco weight |
81 tonnes (80 long tons; 89 short tons) |
|---|
| Engine type |
Pielstick |
|---|
| Cylinders |
12 |
|---|
| Safety systems |
same as TCDD DE24000 |
|---|
|
| Performance figures |
|---|
| Maximum speed |
120 km/h (75 mph) |
|---|
| Power output |
1,320 kW (1,770 hp) |
|---|
Tractive effort:
|
|
|---|
| • Starting |
263kN |
|---|
| • 1 hour |
240kN @ 20 km/h |
|---|
| • Continuous |
36kN at max speed |
|---|
|
|
|

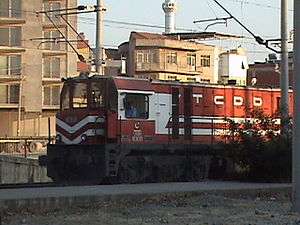

TCDD DE18100 are a type of diesel-electric locomotive built for operations on Turkish State Railways by Matériel de Traction Electrique. Based on the same platform and order as the DE24000, it was a light-axle version of the locomotive, very similar to the DE18000, though with a different wheel arrangement. The units were mostly used around Izmir.
