Wuhan Greenland Center

Wuhan Greenland Center
武汉绿地中心

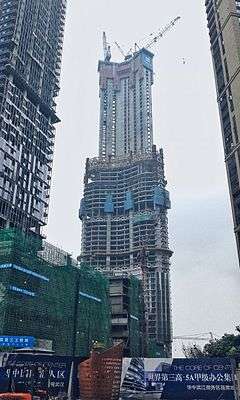

Wuhan Greenland Center as of June 26th, 2016
Alternative names Greenland Center WGC
General information
Status Under construction
Type Offices and hotel
Location Wuhan, Hubei
Address Linjiang Avenue
Country China
Coordinates 30°35′06″N 114°19′02″E / 30.5850°N 114.3172°E / 30.5850; 114.3172
Construction started 2012
Estimated completion 2018
Cost $4.5 billion
Owner Wuhan Greenland Bin Jiang Property
Height
Architectural 636 m (2,087 ft)
Tip 636 m (2,087 ft)
Top floor 575 m (1,886 ft)
Technical details
Floor count 125
(120-125 mechanical)
(B1-B5 underground)
Floor area 303,275 m2 (3,264,420 sq ft)
Lifts/elevators 84
Design and construction
Architecture firm AS+GG
ECADI
Developer Greenland Group
Structural engineer Thornton Tomasetti
Services engineer PositivEnergy Practice
Parsons Brinckerhoff
Civil engineer Prism Engineering
Main contractor China State Construction Engineering
Greenland Group
Other information
Number of rooms 292
Parking 1.051
References
[1][2]

Wuhan Greenland Center[3] is a 636-metre-tall (2,087 ft) 125-storey skyscraper currently under construction in Wuhan, China.[1][4] In June 2011, Adrian Smith + Gordon Gill Architects in conjunction with Thornton Tomasetti Engineers won the design competition to build the tower for Greenland Group.[5] The design has many energy saving features.[5] The building's height was increased to 636 metres (2,087 ft), and is expected to become the tallest building in China, surpassing Shanghai Tower. The expected completion date is 2018.[1]

Floor Directory

Floor purposes
124-125 hotel facilities
123 window washing equipment
122 mechanical layer
121 mechanical layer, refuge area
120 mechanical layer
118-119 Hotel Restaurant
116-117 Hotel Sky Lobby / facilities
114-115 Hotel SPA
106-113 Hotel Rooms
105 hotel rooms, refuge area
103-104 Hotel Rooms
101-102 mechanical layer
91-100 Hotel Rooms
90 mechanical layer, refuge area
80-89 Serviced Hotel
79 service hotel, refuge area
71-78 Serviced Hotel
70 service hotel sky lobby
67-69 mechanical layer, refuge area
60-66 Offices
59 refuge area
51-58 Offices
49-50 sky lobby
48 refuge area
39-47 Offices
36-38 mechanical layer
35 refuge area
27-34 Offices
25-26 sky lobby
24 refuge area
15-23 Offices
14 refuge area
5-13 Offices
2-4 mechanical layer
1-1M office lobby, serviced hotel lobby hotel lobby
B1M bike storage
B1 banquet hall, hotel services, unloading area
B5-B2 parking, mechanical layer

Timeline

References

  1. 1 2 3 "Wuhan Greenland Center". The Skyscraper Center. Council on Tall Buildings and Urban Habitat. Retrieved 2016-04-26.
  2. ↑ "Wuhan Greenland Center". AS+GG. Retrieved 2016-01-17.
  3. ↑ "WUHAN greenland center". greenlandsc.com. Greenland Group. Retrieved 2016-01-17.
  4. ↑ Bloomberg News (2012-02-28). "Chinese Tower May Add Floors to Become World's Tallest After Burj Khalifa". Bloomberg. Bloomberg L.P. Retrieved 2012-03-09.
  5. 1 2 "Adrian Smith + Gordon Gill Architecture Wins Competition to Design Wuhan Greenland Center, to Be the World's Fourth Tallest Building". AS+GG. Retrieved 2016-01-17.
  6. ↑ 武汉绿地国际金融城暨绿地中心开工奠基典礼举行
  7. ↑ 武汉绿地中心地下工程开工
  8. ↑ "中国第二"高武汉绿地中心项目开挖亚洲最大基坑
  9. ↑ "武汉绿地中心项目举行"百日会战"暨劳动竞赛启动仪式-中建三局第二建设工程有限责任公司". zj32.com. Retrieved 2016-11-04.
  10. ↑ 武汉在建第一高楼现场绑活鸡祭祀钢柱(图)
  11. ↑ "世界第3高楼绿地中心主塔楼 "跃"出地面 - 本地房产 - 武汉房地产门户-汉网房地产-武汉房产". house.cnhan.com. Retrieved 2016-11-04.
  12. ↑ "图文：武汉绿地中心今日突破200米_新浪新闻". news.sina.com.cn. Retrieved 2016-11-04.
  13. ↑ "636米高武汉绿地中心破300米大关-建筑施工新闻-筑龙建筑施工论坛". news.zhulong.com. Retrieved 2016-11-04.

Coordinates: 30°35′06″N 114°19′02″E / 30.58500°N 114.31722°E / 30.58500; 114.31722
