Kh-15

Raduga Kh-15 (NATO reporting name: AS-16 'Kickback')

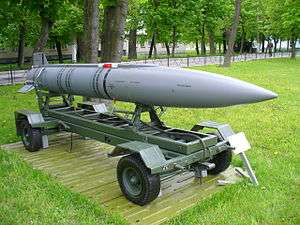

Raduga Kh-15
Type	air-to-surface missile antitank missile
Place of origin	Soviet Union
Service history
In service	1980
Used by	Russia
Production history
Designer	Raduga
Designed	1974-1980
Manufacturer	Dubna Machine-building Plant
Produced	1980
Specifications
Weight	1,200 kg (2,650 lb)
Length	478 cm (15 ft 8 in)
Diameter	45.5 cm (17.9 in)
Warhead	conventional or nuclear
Warhead weight	150 kg (331 lb)
Blast yield	300 kt

Engine	solid-fuel RDTT-160
Wingspan	92 cm (36.2 in) maximum
Operational range	300 km (160 nmi)
Flight ceiling	40,000 m (130,000 ft)
Speed	Up to Mach 5^[1]
Guidance system	inertial guidance, active radar homing, or anti-radiation missile
Launch platform	Su-33, Su-34, Tu-95MS-6, Tu-22M3, and Tu-160 ^[1]

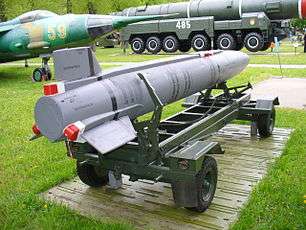

Kh-15 from rear

The Raduga Kh-15 or RKV-15 (Russian: Х-15; NATO: AS-16 "Kickback"; GRAU:) is a Russian air-to-surface missile carried by the Tupolev Tu-22M and other bombers. Originally a standoff nuclear weapon similar to the U.S. Air Force's AGM-69 SRAM, versions with conventional warheads have been developed.

Development

In 1967, MKB Raduga started developing the Kh-2000 as a replacement for the Kh-22 AS-4 'Kitchen' heavy anti-shipping missile.^[1] Development of the Kh-15 started some time in the early 1970s.^[2] The sophistication of the design made it suitable for other roles, and a nuclear-tipped version was developed in tandem with the conventionally armed variant.^[1] An upgrade under development was cancelled in 1991, but reports in 1998 suggested an upgraded Kh-15 might be fitted to Su-35 tactical aircraft.^[2]

Design

The Kh-15 climbs to an altitude of about 40,000 m (130,000 ft) and then dives in on the target, accelerating to a speed of about Mach 5, which makes it the fastest aircraft-launched missile to date.^[1]

Operational history

It entered service in 1980. It can be carried by the Su-33, Su-34, Tu-95MS-6 'Bear-H', Tu-22M3 'Backfire C', and Tu-160 'Blackjack'.^[3]

Variants

Kh-15 (RKV-15) - the original version with nuclear warhead and inertial guidance
Kh-15P - passive seeker for anti-radar use
Kh-15S - active radar seeker for anti-shipping use^[1]

Operators

Current

Russia

Former

Soviet Union- Passed onto successor states

Similar weapons

Raduga KSR-5 (AS-6 'Kingfish') - heavy anti-surface missile carried under the wings of Tu-22M
Kh-59 (AS-13 'Kingbolt') - ASM for tactical aircraft, up to 285 km range
Kh-37 (updated version of AS-20 'Kayak') - land attack version of subsonic Kh-35 Anti-Ship missile, 250 km range
AGM-69 SRAM - 1000 kg US missile with up to 170 km range

Notes

1 2 3 4 5 6 "Kh-15, RKV-15 (AS-16 'Kickback')", Jane's Air-Launched Weapons, 2008-08-01, retrieved 2009-02-03
1 2 "Kh-15 (AS-16 'Kickback'/RKV-15)", Jane's Strategic Weapon Systems, 2008-09-02, retrieved 2009-02-06
↑ http://www.ktrv.ru/about/structure/458/459/

References

Gordon, Yefim (2004). Soviet/Russian Aircraft Weapons Since World War Two. Hinckley, England: Midland Publishing. ISBN 1-85780-188-1.
